Turbosound Iq18b Powered Sub Continuous Watts

User Manual for Turbosound IQ18B 18" Front-Loaded Powered Subwoofer Click to enlarge the picture Contents of the user manual for the Turbosound IQ18B 18" Front-Loaded Powered Subwoofer Product category: PA Speakers Turbosound Brand: Turbosound Description and content of package Technical information and basic settings Frequently asked questions – FAQ Troubleshooting (does not switch on, does not respond, error message, what do I do if...) Authorized service for Turbosound PA Speakers

User manual for the Turbosound IQ18B 18" Front-Loaded Powered Subwoofer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Turbosound product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Turbosound user manual in which you will find instructions on how to install, use, maintain and service your product. And do not forget – unsuitable use of a Turbosound product will considerably shorten its lifespan!

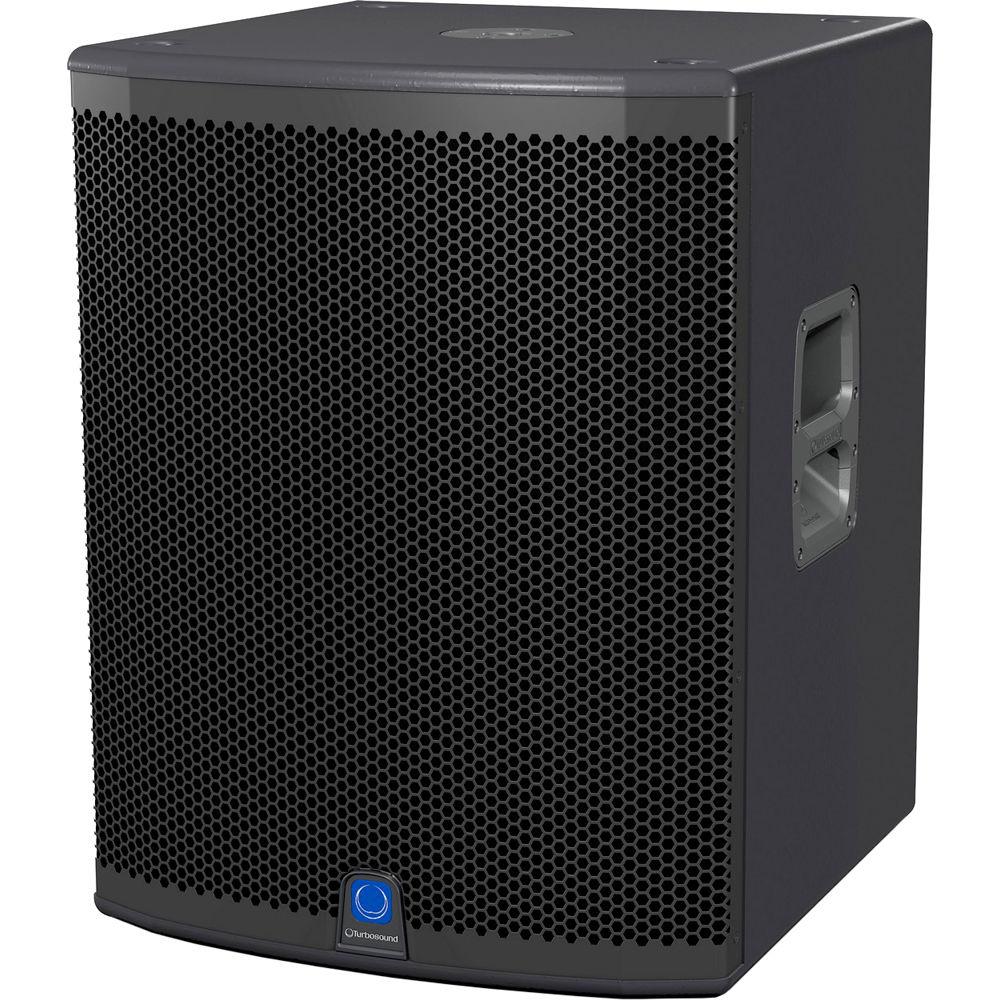

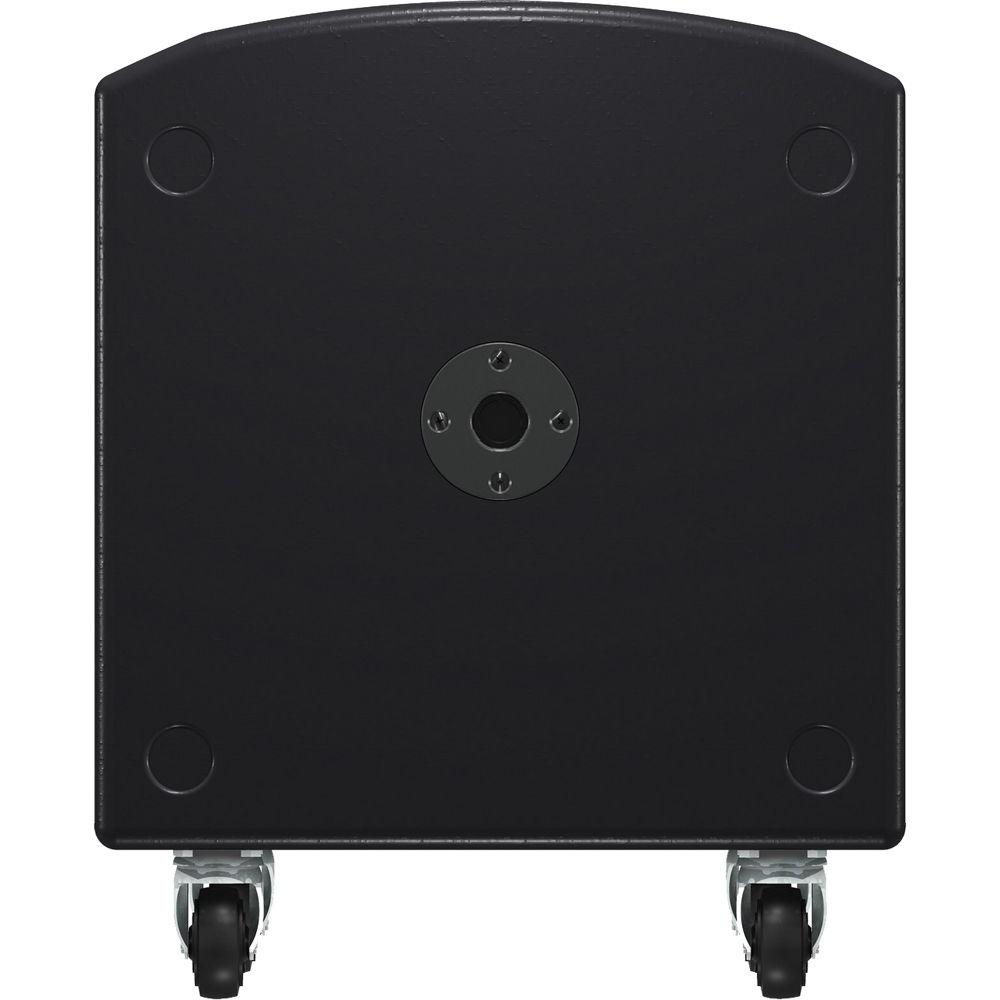

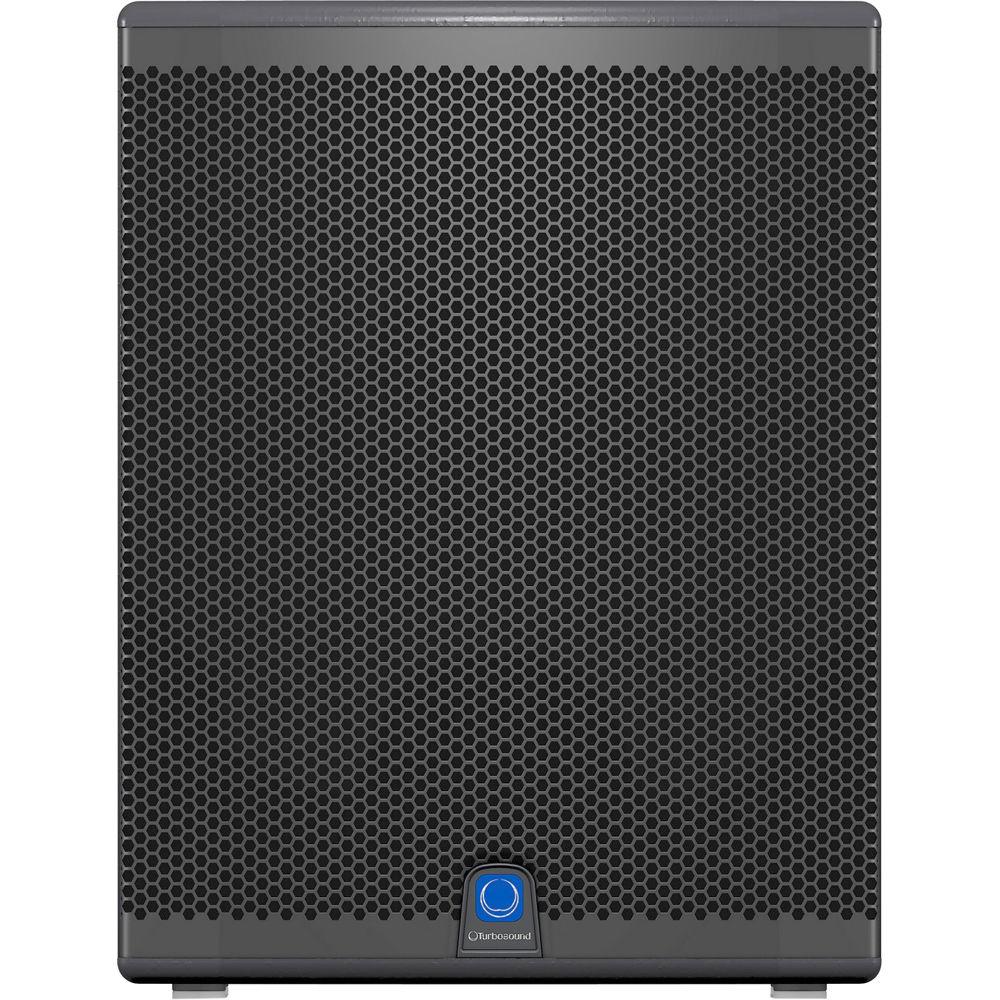

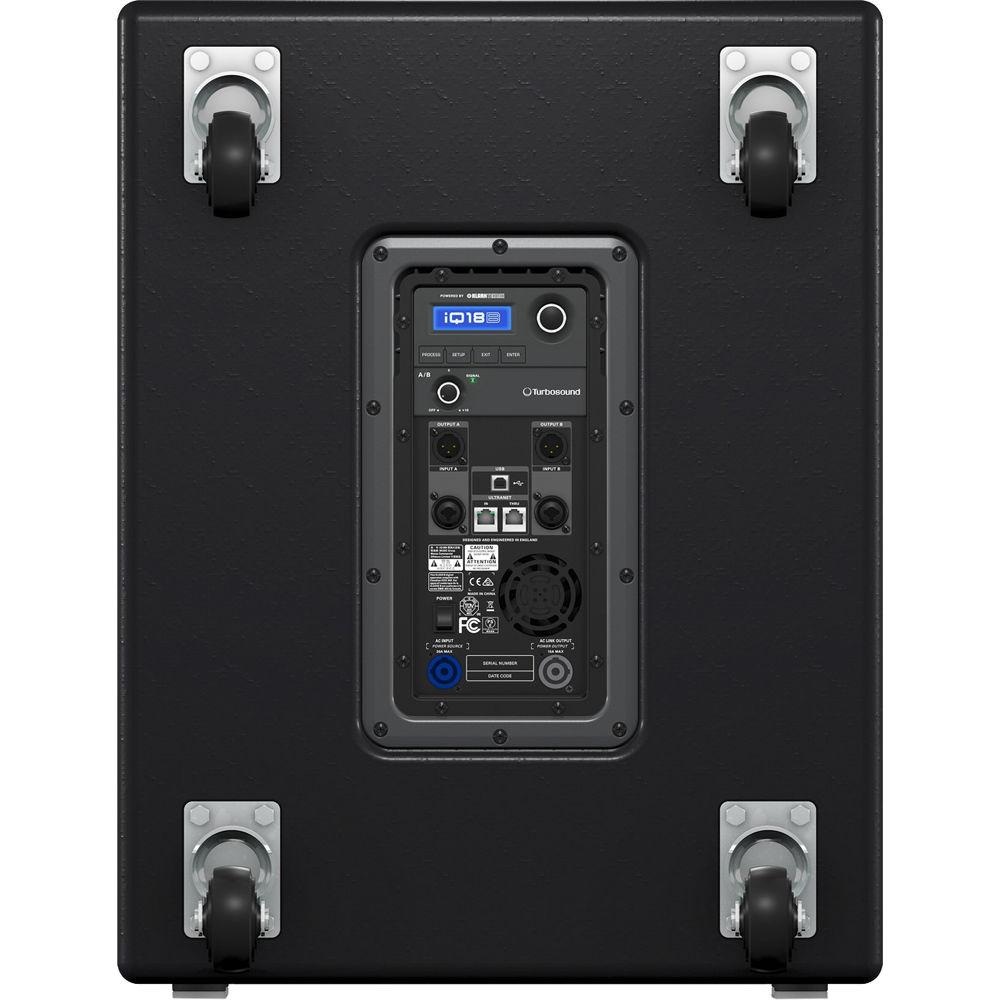

Product description The black IQ18B 18" Front-Loaded Powered Subwoofer from Turbosound is a 3000W high-performance 15" front-loaded subwoofer system designed for a wide range of speech and music sound-reinforcement applications. The high-excursion 18" low-frequency driver with double-suspension low-mass 4" voice coil provides fast and accurate transient response for virtually distortion-free operation.The birch-plywood enclosure is finished in a hard-wearing semi-matte black paint and fitted with a rugged powder-coated perforated steel-mesh grille, 35mm pole mount to support a satellite speaker, and plated steel castors with rubber tires. Mains-power input and link output is provided via Neutrik powerCON connectors. Front-loaded powered subwoofer for portable PA and installation applications 3000W power featuring KLARK TEKNIK Class-D technology KLARK TEKNIK Digital Signal Processing for total system control Speaker modeling includes accurate models of industry-standard speakers ULTRANET digital-audio networking connects to mixers and other sources High-excursion 18" low-frequency driver with 4" voice coil and double suspension Fully featured user interface with LCD display for ease of navigation Birch-plywood enclosure with hard-wearing semi-matte black paint finish Rugged powder-coated perforated steel-mesh grille Plated steel castors with rubber tires Mains input and link output on Neutrik powerCON connectors UPC: 748252144140 In the Box Turbosound IQ18B 18" Front-Loaded Powered Subwoofer (Black) Limited 10-Year Warranty Table of Contents

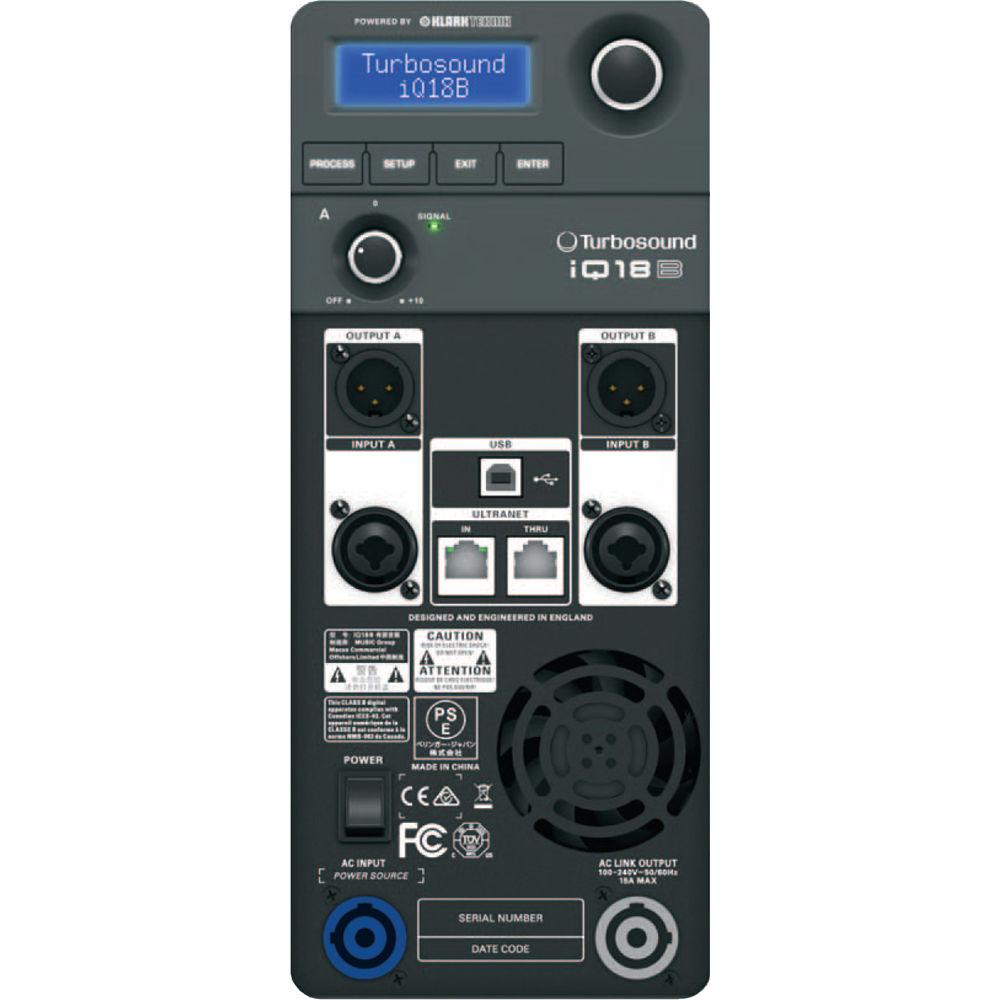

Upload User Manual Have you got an user manual for the Turbosound IQ18B 18" Front-Loaded Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users. To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear. Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% Technical parameters Turbosound IQ18B Specs Frequency Response 50 to 130 Hz ±3 dB 40 to 130 Hz -10 dB Nominal Dispersion Half Space Maximum SPL 130 dB peak Crossover Type Active Driver 1 x 18.0" (45.7 cm) LF driver Limiter Peak and RMS Maximum Output Power 3000 W Type Class-D Protection Short circuit, open circuit, thermal Input A / B: 2 x combo XLR-1/4" Sensitivity Line +4 dBu Input Impedance Unbalanced: 20 kOhms Balanced: 40 kOhms Maximum Input Level +21 dBu Output A / B: 2 x XLR linked to input Ultranet Input/Link 2 x RJ45 Mains Supply Neutrik powerCON input 20 A and link 15 A DSP Rotary push-encoder Buttons for PROCESS, SETUP, EXIT, ENTER Mixer Section 1 x gain controls (channels A and B) 2 x line EQ Presets Positioning, sound mode Display LCD 128 x 32, blue backlit Delay 0 to 300 ms Equalizer High- and low-shelving EQ 2 x parametric EQ Limiter Zero-attack input limiter Presets 20 total presets, 19 user-definable Crossover Low Pass L-R 24 dB / octave Protection Lock-out function for all settings System Signal: 16 channels Latency: <0.9 ms Cabling Shielded CAT5 Maximum Cable Length: 246.0' (75.0 meters) recommended Power Consumption 200 W @ 1/8 maximum power Voltage 120 V, 60 Hz (T: 15 A, H: 250 V) Construction Birch plywood (screwed and glued) Grille Powder-coated perforated steel Dimensions (W x H x D) 27.2 x 21.0 x 22.0" (69.0 x 53.3 x 55.9 cm) Weight 87.5 lb (39.8 kg) Package Weight 106.0 lb Box Dimensions (LxWxH) 34.0 x 28.0 x 27.0" Rating 94% users recommend this product to others. And what about you? This product has already been rated by 74 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. Post new comment to Turbosound IQ18B 18" Front-Loaded Powered Subwoofer Subject: How do I balance my subs with a set of powered 15 skr. cabinets, also how do I use the iQ 18B equilizer? Date: 27.05.2022 15:42:31 Name: Ricksu I have purchased the iQ 18B Turbo sound spkrs with the klarke technic specs. My question is how do I get a smooth sound that will co-inside with and a great balance sound when performing live with a band? Thank you for any information that will calm my being as I try to show that these spkrs are more than just sub spkrs. As we all know sound can do two thngs make or break you in a live performance. I love my Turbo 18's and I'm using as my top spkrs a set of Alto's 15 Post reply Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
